Model No.: In-line LED lantern
3mm green-hair-green fog strong long feet in-line led
Introduction to the one-time extrusion molding scheme of LED silicone soft light stripDescription of the one-time extrusion molding scheme of silicone soft light belt
LED outdoor lighting market upgrade product transformation, the production process of traditional flexible light strips, neon tube strip lights gradually adopts the cold extrusion of silica gel, and the one-time molding extrusion process of silica gel is used in the appearance and luminous angle of light strips, light strips and other products. Both can have a more novel and avant-garde performance, get rid of the limitations of the industry's traditional solutions, and meet the requirements of the market. Silicone extrusion is waterproof, anti-chromatic, and anti-color temperature drifting far beyond the traditional technology In-line lamp beads. The combination of cold extrusion waterproof standard IP67 and the silicone itself adapts to various extreme climates, so that the product breaks all regional restrictions, and the use of Food-grade silica gel is a product produced from raw materials, which fully meets the world's major certification requirements such as CE, ROHS, SGS, and CEP.
One-time extrusion molding scheme of silicone soft light strip Extrusion scheme process:
First install the LED light strips in rolls purchased from the market on the pay-off rack, adjust the released light strips to be level and tidy through the adjustment table, and then pass the light strips through the silicone head of the pre-installed mold, and then start The operation button on the electric control box will run the machine to wrap the running silicone material on the light bar and squeeze it out, and gradually vulcanize the product through the vulcanizing oven until it is mature (the temperature should not be set too high to prevent burning of the LED lamp beads), Finally, the vulcanized product is led out by the tractor In-line LED lights.
2Characteristics of silicone one-time extrusion molding lamp strip
Compared with epoxy glue encapsulation light strip, PU glue encapsulation light strip, liquid silicone encapsulation light strip, this series of light strips have the following characteristics:
1. The color temperature drift is smaller, which can ensure that the color temperature after sealing is not much different from the original color temperature and the color temperature is consistent In-line lamp holder LED.
2. This product is a hollowed-out outer inner arc design. The glue and lamp beads are peeled off, which effectively solves the problem of chromatic aberration, has a better lighting angle, and is easier to repair.
3. Due to the one-time extrusion type of the light strip, the plug is integrated with the extruded light strip by molding, it has excellent water resistance, is not corroded by water, and the light will not be separated after long-term lighting in water In-line LED lantern.
4. This product is co-extrusion of silica gel and light strip. Through mold forming, it can extrude more than one thousand meters at a time. The extrusion size is more standard and the efficiency is high.
5. This product is heat curing type, so the deep curing time is short and the shipping speed is fast Red hair red in-line LED.
6. With excellent light transmittance and refractive index, it can minimize the light attenuation of the light source.
7. With excellent weather resistance, it can ensure that the light bar can be used normally in a wide temperature range (-50～250℃) and underwater and other special environments, so that the light bar can be used almost unlimitedly.
8. The resistance to acid, alkali and salt is better. In the case of weak acid, weak alkali and weak salt, the appearance of the light strip remains unchanged, and it is used normally.
9. It has super anti-ultraviolet ability, which can ensure the lamp belt to be used outdoors for a long time.
10. The excellent silica gel strength makes the lamp belt have high resistance to damage in special environments.
11. The environmental protection level of the sealing collagen material is higher. The colloid of this product is food-grade silica gel.
12. The adhesion between the light board and the colloid is very good, resulting in a brighter appearance of the light strip In line LED.
13. The extrusion process solves the problems related to the difficulty of sealing and molding the non-conventional size lamp belt, one-time extrusion, and tailoring according to the customer's requirements
14. Molding can meet any design needs of the guests (size, shape, color, etc.) of the light strip
|Origin: Guangdong||Export or not: Yes||Order No.: 12458794|
|Brand: XiGe||Article No.: 5897619||Model: 1206|
|Size：1206||Power: 0.5 (W)||Color rendering index: 80|
|Luminous flux: 10 (LM)||Forward voltage: 12 (V)||Reverse voltage: 12 (V)|
|ESD：12（V）||Rated current: 10 (a)||Chip brand: San'an|
|Chip size: 5 (MIL)||Phosphor brand: customizable||Glue brand: customizable|
|Wire material: gold wire||Bracket material: Copper||Luminous angle: 15 (°)|
|Luminous efficiency: 100 (LM / W)||Thermal resistance: ≤ 50 (° / W)||Maximum allowable junction temperature: 100 (°)|
|Voltage temperature coefficient: 5 (MV / ℃)||1000 hours conventional aging: 85%||6000 hours conventional aging: 20%|
|Lm-80 test passed: Yes||Color temperature range: 10 (k)||Cross border export source: Yes|
Dongguan XIGE Electronics Co., Ltd.

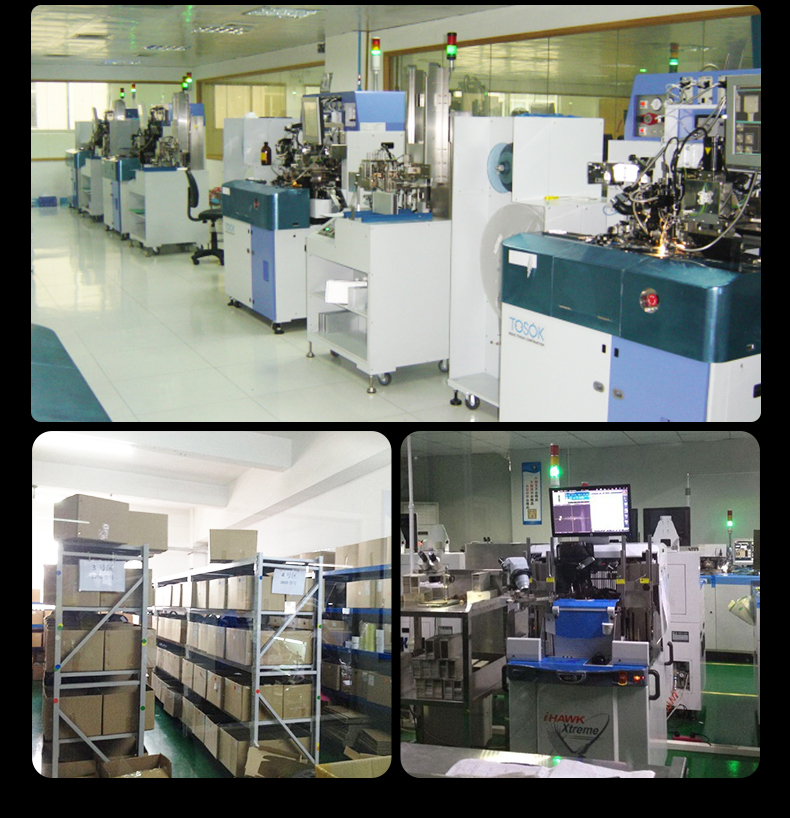

Dongguan XIGE Electronics Co., Ltd., Dongguan City, Guangdong Province, was established in 2006 In the same year, the Hong Kong company KANG LEADER INTERNATIONAL HOLDINGS LIMITED was established. It is a high-tech manufacturer of electronic semiconductor components composed of a group of vigorous and energetic personnel with many years of industry experience. The company is located in a vibrant modern city-Dongguan, with convenient transportation. At present, the main products are brightness red, green, blue, yellow, orange, pink, amber, orange, colorful lights, 5050 three-color (RGB), four-color (RGBW.RGBY) piranha, white light-emitting diodes, traffic lights , Outdoor display screen (pixel lamp); infrared emitting and receiving diode; cover components; SMD series of light-emitting patch components; digital tube and dot matrix; point light source backlight, etc., rich in varieties and all available. We have always adhered to the people-oriented management philosophy, with the purpose of "emphasizing practical results, focusing on innovation, and advocating quality", to create a good atmosphere of unity and cooperation and forge ahead. The company's leaders have rich industry technical capabilities and management experience, and the main body of the company is composed of young people with a spirit of hard work and the courage to pioneer and innovate. With the joint efforts of all the employees of the company, while providing comprehensive services to our customers, Sigurd has also established a good corporate image for the company, and the company's development is thriving and has achieved a broader range.
- Company Name: Dongguan XIGE Electronics Co., Ltd.
- Representative: Mr Huang
- Product/Service: SMD LED , In-line LED , Illumination LED , Light Emitting Diode , High-power LED , Lamp Bead Patch
- Capital (Million US $): 500,000RMB
- Year Established: 2020
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 11% - 20%
- Total Annual Purchase Volume (Million US $): US$1 Million - US$2.5 Million
- No. of Production Lines: 11
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: Fewer than 5 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): Below 1,000 square meters
- Factory Location: Room 202, Building 4, No. 3, East Siheng Road, Lianhu, Tangxia Town, Dongguan City, Guangdong Province
- Contact Person: Mr. Huang Yiyu
- Tel: 86--13751262319
